BH1311 KV2 -

  • Model No BH1311 KV2
  • Marka Evercore
  • Menşei Guangdong ,China

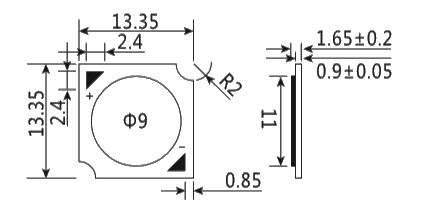

  • Chip PCB Boyutları 13x13 mm
  • Les çapı 11 mm
  • Sertifika ISO9001 / LM-80 / RoHS / CNAS / CE / IEC
  • Güç Tüketimi 3-12W

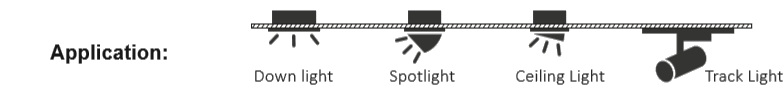

  • Uygulama Downlight / Spotlight / Ceilinglight / Tracklight
  • Teslimat Süresi 1-4 Week

Detaylı Bilgi

Evercore Supreme COB | High Efficiency COB HE150 Series

COB nature white(2700K-6500K ANSI standard)
Ra>80/90, Lumens efficiency 140lm/W ,150lm/W 160lm/W , 36V-38V.
Universal size, easy to install and uninstall

Commercial COB-HE150 Series



NO Product Model Rated Power     (W) Rated Current (mA) Max. Current (mA) Min Voltage (V) Max Voltage (V) CCT  (K) Luminous efficacy (lm/w) Ra
1 BH1311-0112J3W27G-KV2 3 90 200 34 40 2700 150 >80
2 BH1311-0112J3W30G-KV2 3 90 200 34 40 3000 150 >80
3 BH1311-0112J3W40G-KV2 3 90 200 34 40 4000 155 >80
4 BH1311-0112J3W57G-KV2 3 90 200 34 40 5700 160 >80
5 BH1311-0212J6W27G-KV2 6 180 200 34 40 2700 150 >80
6 BH1311-0212J6W30G-KV2 6 180 200 34 40 3000 150 >80
7 BH1311-0212J6W40G-KV2 6 180 200 34 40 4000 155 >80
8 BH1311-0212J6W57G-KV2 6 180 200 34 40 5700 160 >80
9 BH1311-0312J9W27G-KV2 9 270 600 34 40 2700 150 >80
10 BH1311-0312J9W30G-KV2 9 270 600 34 40 3000 150 >80
11 BH1311-0312J9W40G-KV2 9 270 600 34 40 4000 155 >80
12 BH1311-0312J9W57G-KV2 9 270 600 34 40 5700 160 >80
13 BH1311-0412J12W27G-KV2 12 360 800 34 40 2700 150 >80
14 BH1311-0412J12W30G-KV2 12 360 800 34 40 3000 150 >80
15 BH1311-0412J12W40G-KV2 12 360 800 34 40 4000 155 >80
16 BH1311-0412J12W57G-KV2 12 360 800 34 40 5700 160 >80
